Data-way

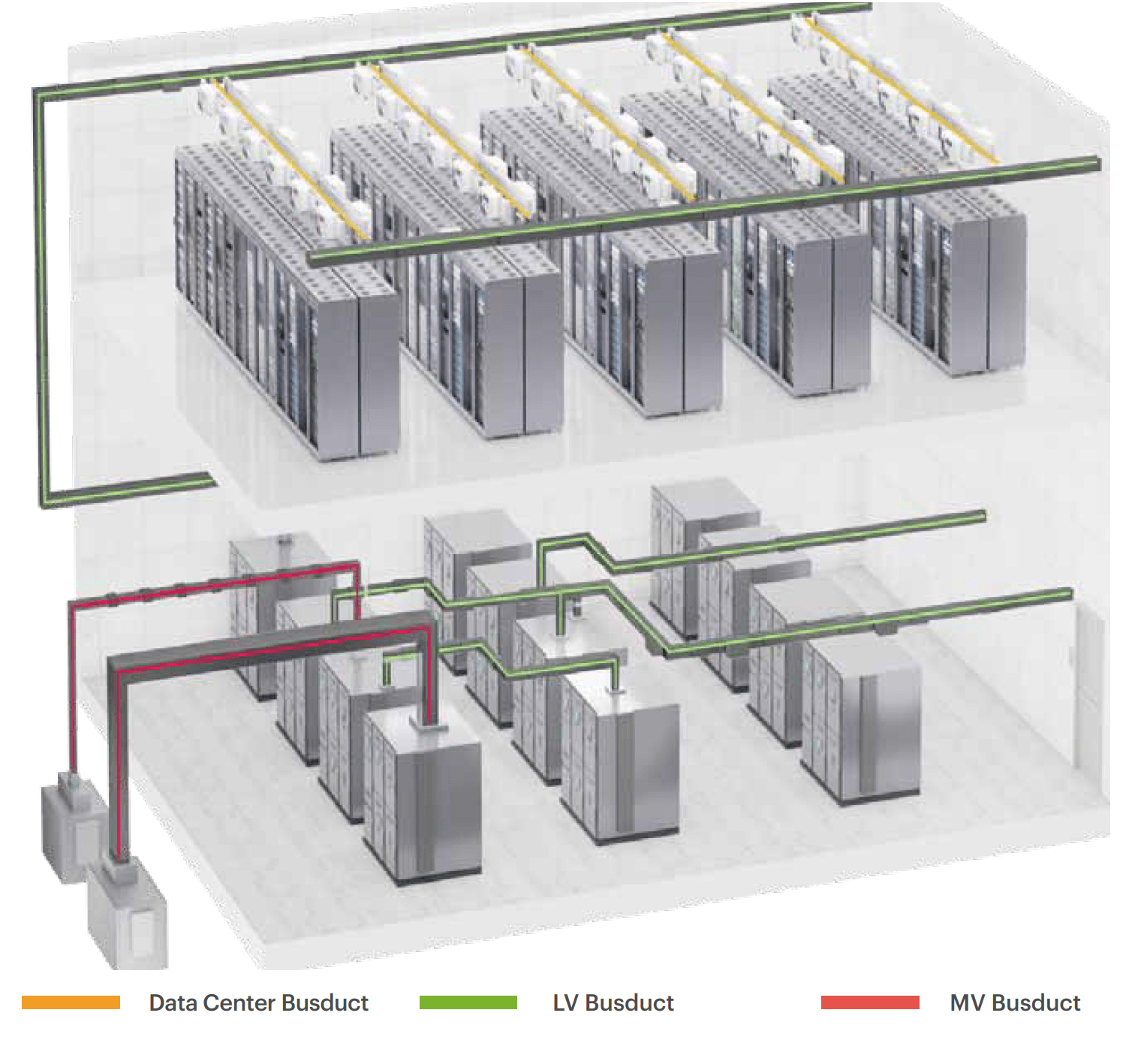

LS Cable & System’s Data-way for Data Center is a system that can satisfy your requirements and continuously respond to the changing distribution environment. LS Cable & System’s Data-way reduces time and cost loss incurred by cable extension and IT rack relocation. Data-way is a solution to maximizing energy efficiency and stable power supply to your Data Center.

Applications

     -Data Center
     -White Room
     -Rack Room

Flexibility

Convenient upgrade and replacement of IT rack equipment.
Applicable to all types of Data Center

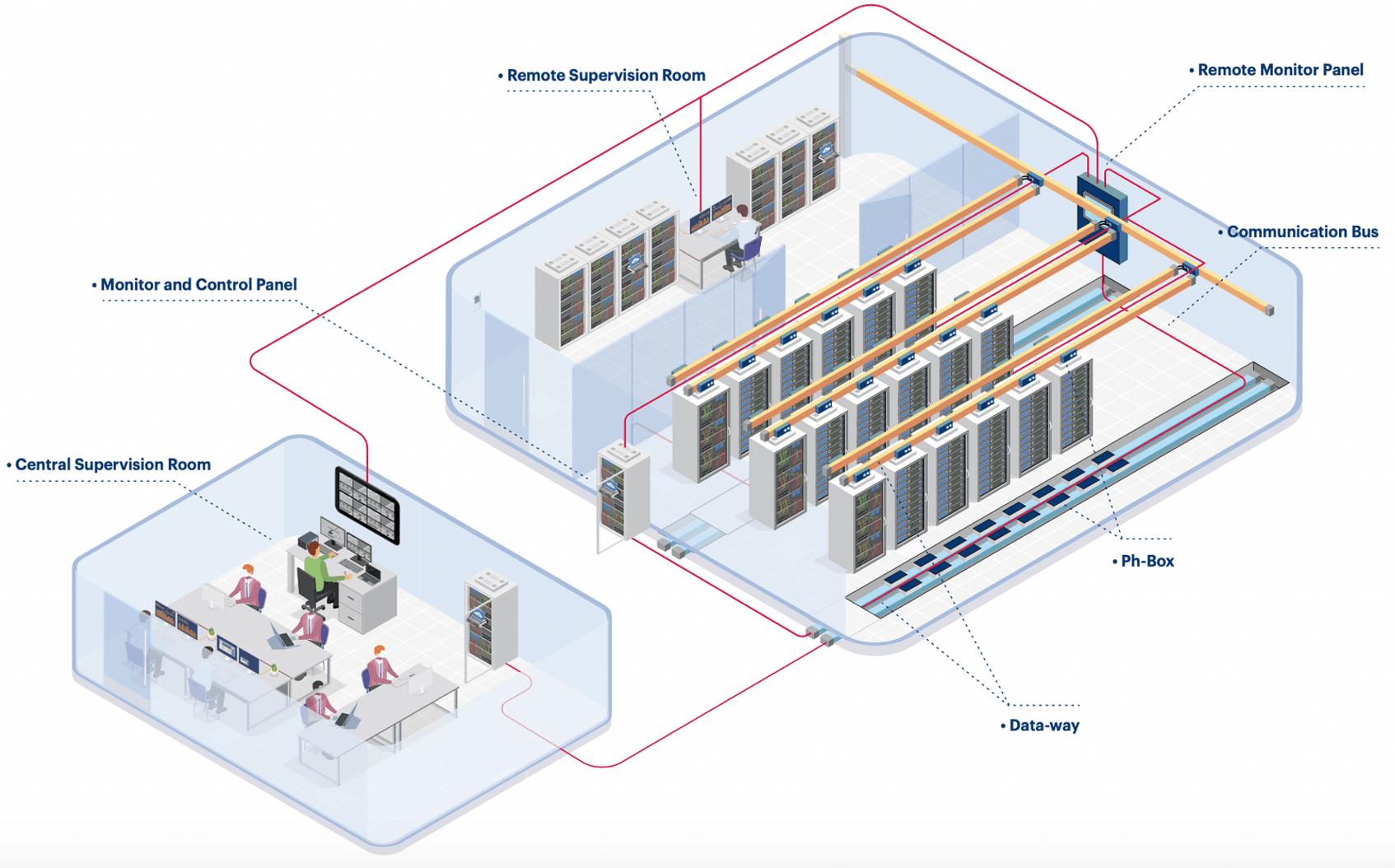

Monitoring System

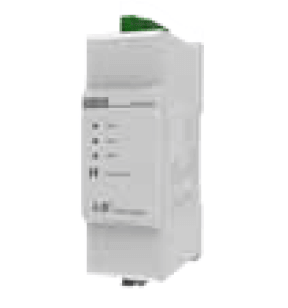

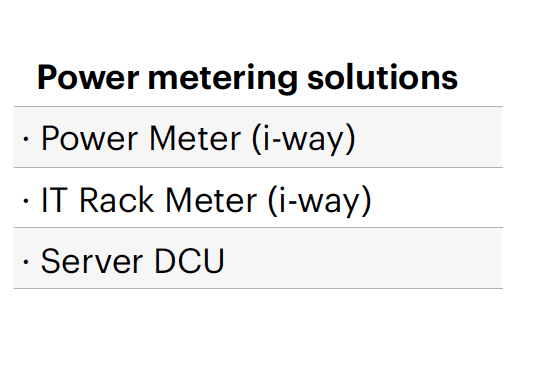

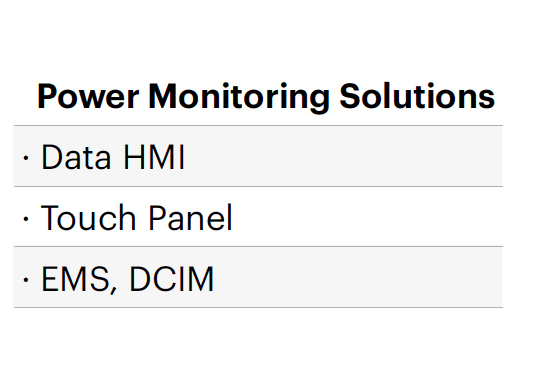

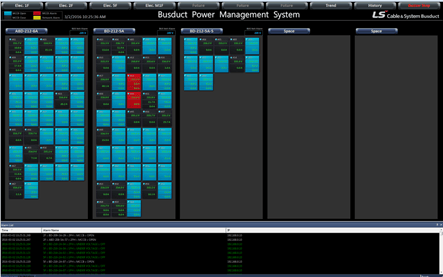

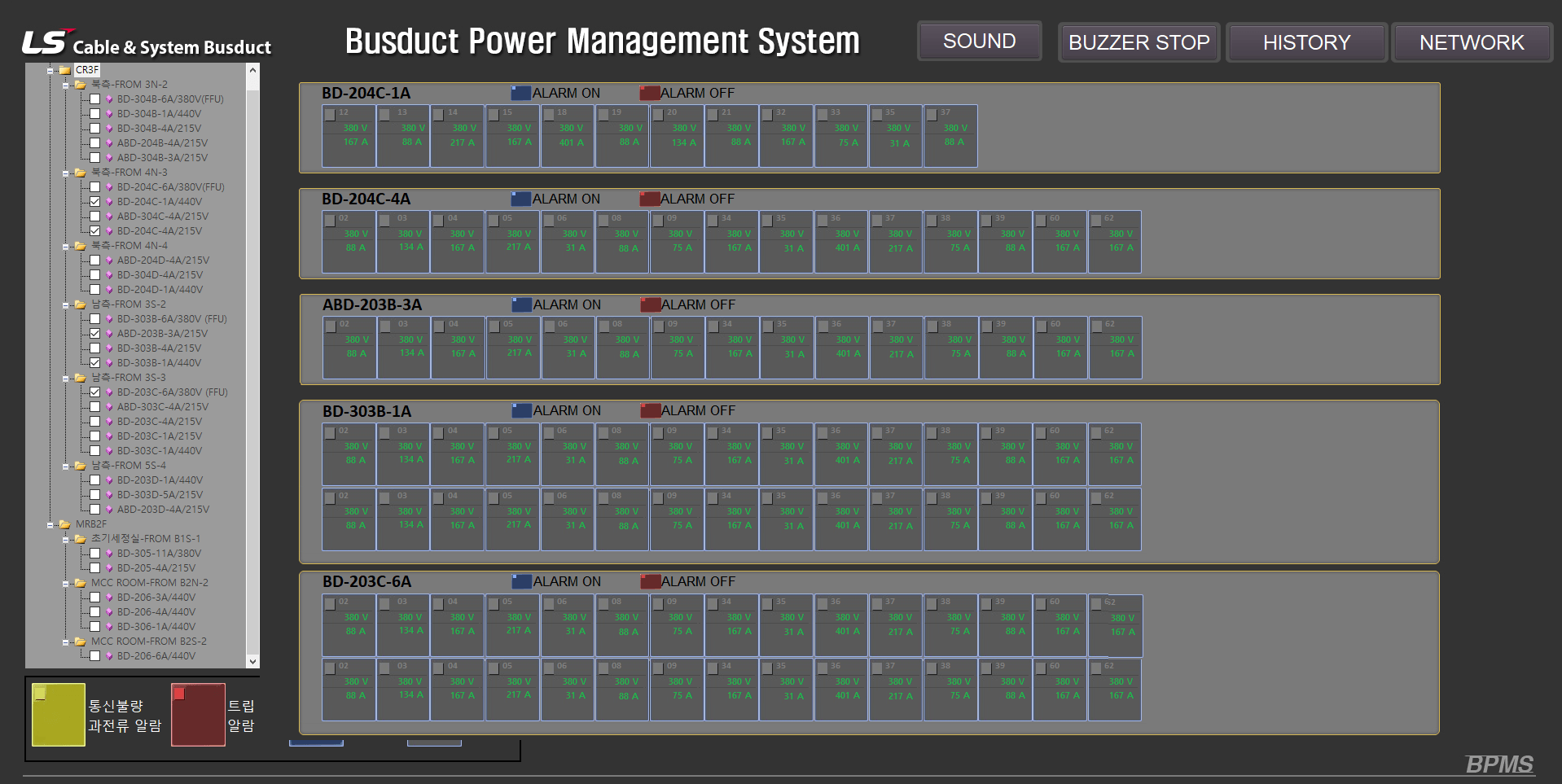

Data-way’s power monitoring system allows real-time monitoring of power supply and efficiency.

Simple Installation

The extension and removal of the Data-way is as simple as fitting and removing socket-outlets.

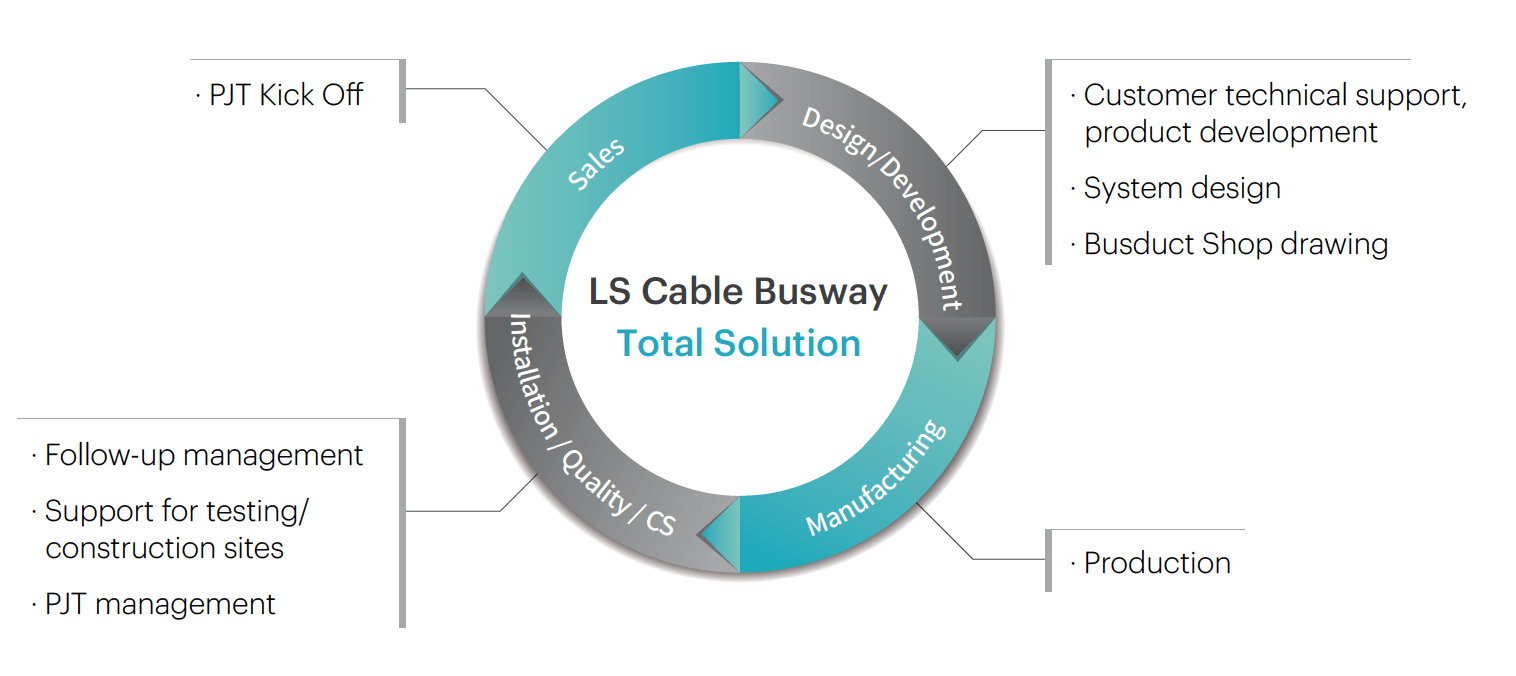

Why LS Cable and System Busway in Data Center?

-LS Cable and System provides solution to maximize customer satisfaction during project life cycle.

-A CS team is dedicated for post diagnosis and management.

Data-way is designed to satisfy the features required for
Data Center up to AC 1000V / 800A

High Current Density

The Busway has a compact design compared to the existing models by using an effective heat-radiating housing profile and can carry from 160A up to 800A with reduced loss of electric power.

Eco- Friendly

Data-way acquired RoHS certification. Only using components without hazardous substances such as lead, cadmium, mercury and chrome.

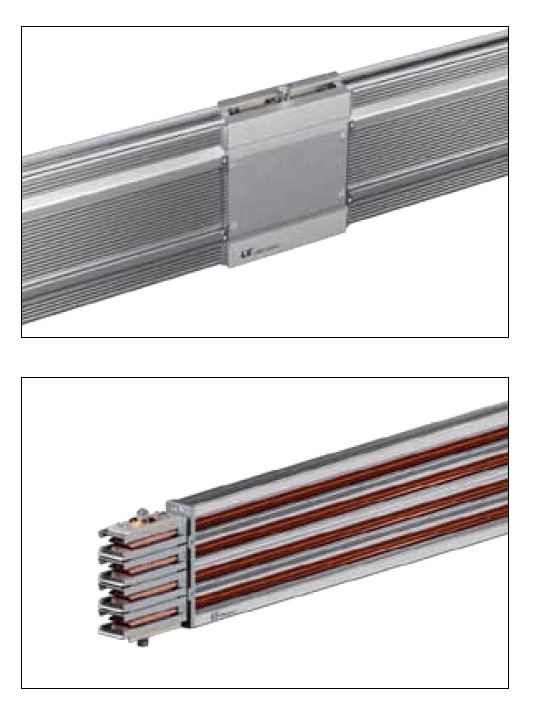

Connection

Kit : DH (dual head) bolts and Visible-label (Redtag) Check for installation using the contact.

Permissible Operating Temperature

The cross sectional areas of the conductor and housing profile are designed to meet the standard permissible operating temperature of IEC 61439-1, 6 or UL 857. Therefore the temperature rise limit of the housing is within 55K or less of the ambient temperature.

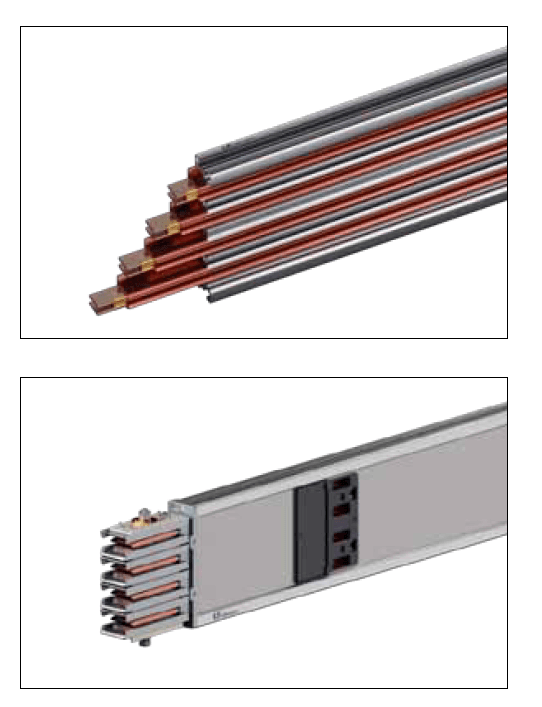

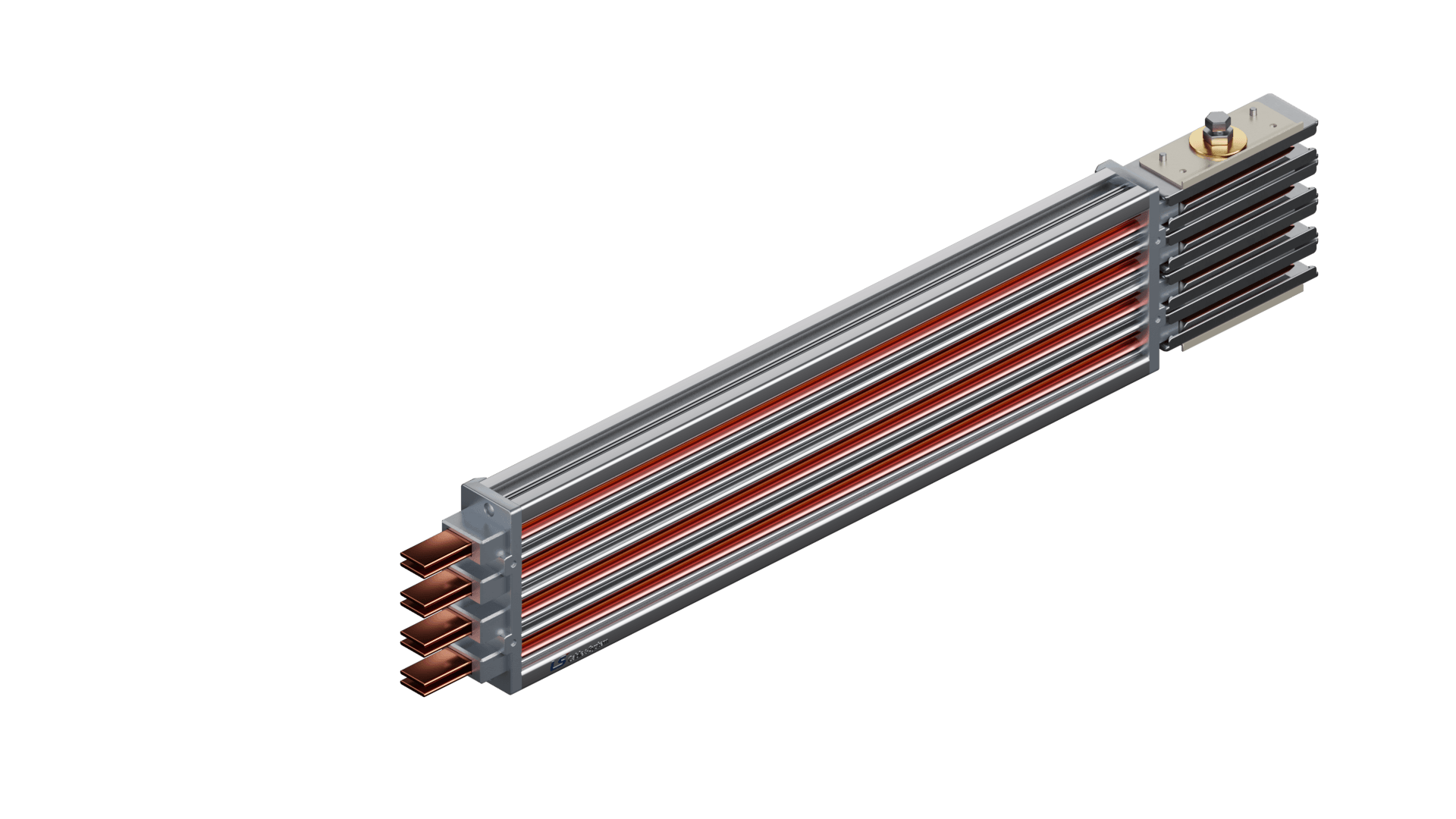

Conductors

Data-way uses either copper conductors with conductivity over 99%, or aluminum conductors with conductivity over 61%. U shape of conductor enables the Data-way to achieve the best performance and easy distribution.

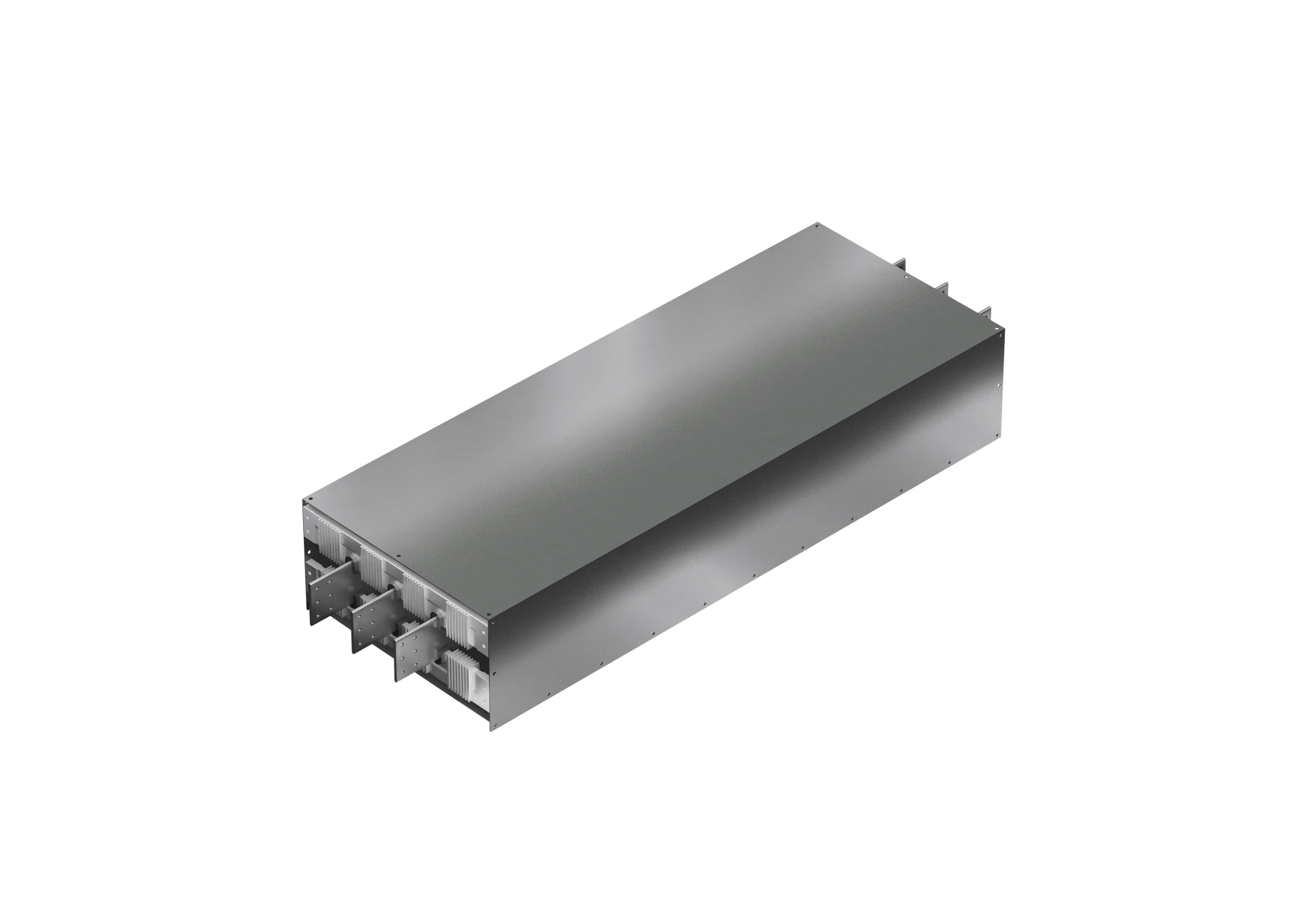

Housing / Distribution

Data-way uses an effective heat-radiating aluminum housing which produces an excellent mechanical strength and heat radiation. It provides two distribution solution of Track type / Plug In type.
